Overview – MALE ELBOW ADAPTER 100501 Series

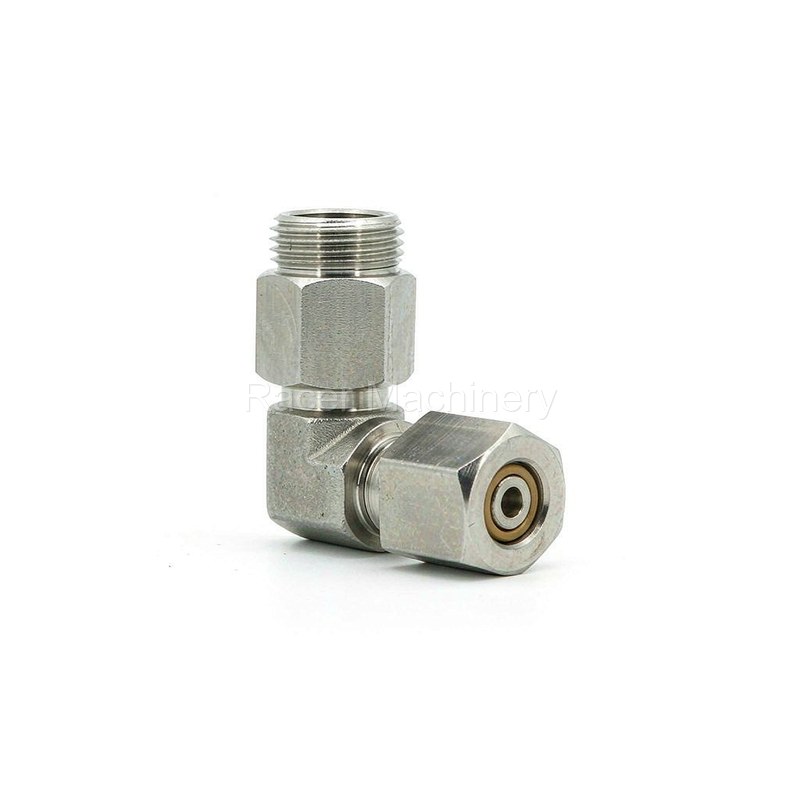

The Cummins MALE ELBOW ADAPTER 100501 is part of a proven family of components used across Cummins hydraulic positions as the male elbow adapter turning a line 90 degrees with a face seal, and several interchangeable part numbers share the same fitment.
Parts Characteristics
A male elbow adapter that turns a hydraulic line through ninety degrees with a positive face seal, so the fluid stays contained as it changes direction. It carries the bend that the circuit depends on, so a true, correctly seated elbow keeps the joint from weeping under pressure.
Applicable Models & Applications
Used at Cummins hydraulic positions specifying this male elbow adapter (series). Match the thread, the seat and the bend against your old adapter – elbow adapters differ in how they seal and turn.
Maintenance & Replacement
Inspect for weep at the seat and a pickup at the face at every hydraulic service. An elbow that has begun to weep drops the pressure, and the drop is what slows the tool.
Confirm the seal is present and undamaged on fit. An elbow run without its face seal cannot hold, and the joint opens the moment the pump loads.
Replace rather than retorque a damaged seat. An elbow whose face has picked up cannot seat true and the line weeps.
Keep common male elbow adapters for your circuit on the bench. They cost almost nothing, they hold an expensive line, and a circuit open on an elbow is a machine waiting on a small part.
Price Reference (USD)
The MALE ELBOW ADAPTER 100501 is offered in the USD 8-55 range, with quantity breaks available for fleet maintenance programs.
Value & Service
We supply brand-new Cummins male elbow adapters with the thread and seat confirmed against your circuit, so the bend stays sealed.
Related interchange numbers for the MALE ELBOW ADAPTER: 107118, 112105, 116936, 120437, 121229, 142429, 144372, 144377, 183649, 193599, 203071, 204995, 3003093, 3005845, 3017108, 3025611, 3032631, 3065523, 3067503, 3086019, and more – confirm the exact variant against your model’s parts book before ordering.
Racer Machinery’s catalog covers the full Cummins Hydraulic Parts range, and the MALE ELBOW ADAPTER 100501 is priced to keep your maintenance budget under control.
