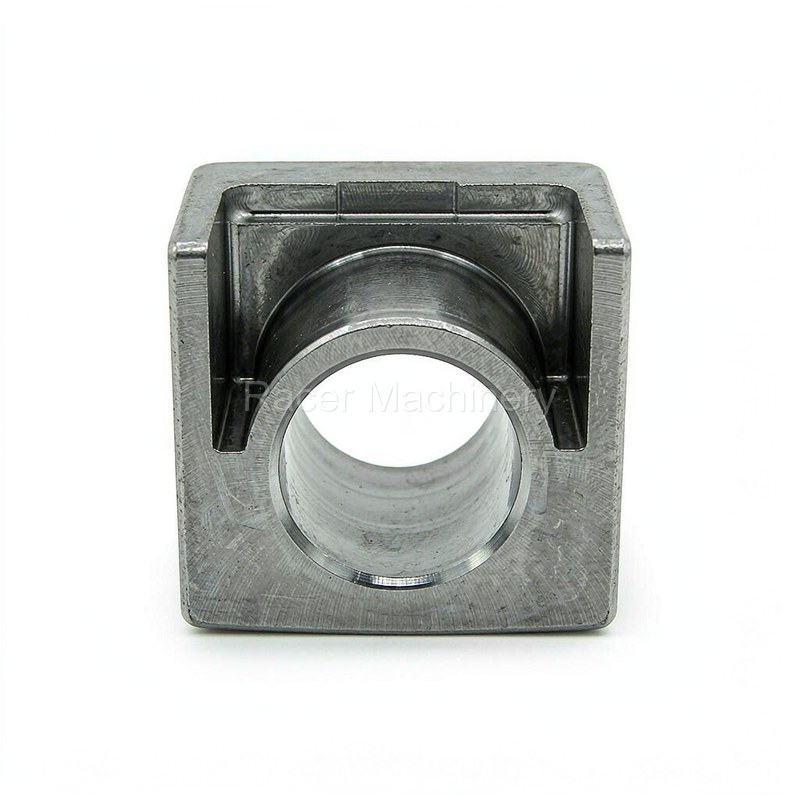

Overview – Work Equipments SEAT;SPRING 163601 Series
The Hitachi SEAT;SPRING 163601 fits Hitachi work-equipment and linkage as the spring seat; because multiple part numbers interchange, we list the related series so you can match what is on your machine.
Parts Characteristics
A spring seat that locates and squares a spring against its mating component in the linkage or cylinder. It sets the spring’s axis and reaction face, so a true, undamaged seat keeps the spring loading the part it was designed to load.
Applicable Models & Applications
Fitted to Hitachi linkage positions of this shape. Match the seat profile and standoff against your old part – spring seats that look alike differ in how the spring seats and how far they sit off the face.
Maintenance & Replacement
Inspect seats for cracking and witness marks that no longer line up. A seat that has begun to move lets the spring cock, and a cocked spring loads the bore unevenly.
Re-torque the seat retention to specification, especially after linkage work. A seat that has loosened hammers its own bolts loose and cracks the casting it bolts to.
Fit the new seat true and square. A seat a few millimetres out throws the spring off-axis, and the resulting side load shortens both the seat and the component it carries.
Keep the seats for your model on the shelf. They are structural, not trim, and a failed one turns an inexpensive plate into a larger repair.
Price Reference (USD)
The SEAT;SPRING 163601 is offered in the USD 10-45 range, with quantity breaks available for fleet maintenance programs.
Value & Service
We supply brand-new spring seats with the profile and standoff confirmed against your Hitachi model, so the spring stays located and true.
Related interchange numbers for the SEAT;SPRING: 398004, 733405, 788707, 791809, 809601, 921911 – confirm the exact variant against your model’s parts book before ordering.
Racer Machinery ships the Hitachi SEAT;SPRING 163601 to over 100 countries, with packaging built for the rough handling of international freight.
